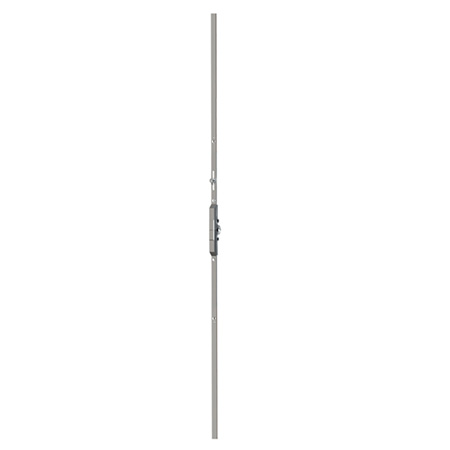

7.5mm Espagnolette in the Middle of the Handle
For the Top Link ; Can be used with Standard, Narrow, Security Pin, Security Narrow, Ventilated, Double Pin Corner Movement transmission
When using Standard Serial Corner Motion Transmission; Minimum Wing Height: 480mm.
When using Narrow Series Corner Motion Transmission; Minimum Wing Height: 371mm.
Lower Link for Side Tipping feature ; Provides the opportunity to use with Lower Locking Hardware.
Bottom Connection for Bottom Tip-over feature ; Can be used with Safety Pin and Safety Pin Narrow Corner Movement Transmission.
Misuse Security; It provides safe use with its Wing Lifting and Misuse Safety Equipment.
Additional Locking; It supports thermal insulation by allowing additional locking hardware to be added.
Gasket Pressure Adjustment ; Allows changing of the seal pressure setting with a diameter of ±0.8 mm
Assembly; It saves time with easy installation.
3.9×25 YHB Coarse Toothed Espagnolette Screw Code: 449.339.025.001
Covering It has long-lasting corrosion protection with YelkenCoat coating.
Description
Usage Range Min: 367mm-Max: 2400mm
Axis 7.5mm
Arm Place Arm Place Ortacia
Body Type: Zamak Body
Security Level (HKE) Misuse Safety
Eccentric Pin/Safety Pin: Yes
Order Details
| Eccentric Pin (EP) Product Code | Security Pin (GP) Product Code | Pinless (X) Product Code | Amount | kg |
|---|---|---|---|---|
| 187.010.801.000 | 187.110.801.000 | 187.010.601.000 | 10 | 3.45 |
| 187.021.001.000 | 187.121.001.000 | 187.010.701.000 | 10 | 3.69 |
| 187.321.001.000 | 187.121.101.000 | – | 10 | 4.57 |
| 187.021.301.000 | 187.121.301.000 | – | 10 | 5.43 |
| 187.021.501.000 | 187.121.501.000 | – | 10 | 5.98 |
| 187.021.701.000 | 187.121.701.000 | – | 10 | 7.59 |
| 187.022.101.000 | 187.122.101.000 | – | 10 | 8.64 |
| 187.022.301.000 | 187.122.301.000 | – | 10 | 10.4 |
Technical Details
| Group | Usage Range | A | B | C | D | Misuse
Security |
Screw | Opposite |
|---|---|---|---|---|---|---|---|---|
| GR:00 | 480-700 | 630 | – | – | – | ❌ | – | – |
| GR:01 | 585-1000 | 730 | – | – | – | ❌ | 2 | – |
| GR:01-1 | 685-1100 | 830 | 120 | – | – | ✅ | 2 | 1 |
| GR:02 | 885-1300 | 1030 | 120 | – | – | ✅ | 4 | 1 |
| GR:02-1 | 985-1400 | 1130 | 120 | – | – | ✅ | 4 | 2 |
| GR:03 | 1285-1600 | 1330 | 220 | 300 | – | ✅ | 6 | 2 |
| GR:04 | 1385-1800 | 1530 | 272 | 272 | – | ✅ | 8 | 2 |
| GR:05 | 1585-2000 | 1730 | 322 | 322 | – | ✅ | 8 | 2 |
| GR:06 | 1985-2400 | 2130 | 372 | 372 | – | ✅ | 10 | 2 |
