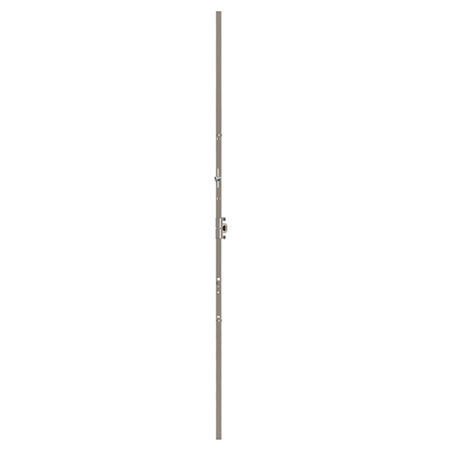

15 mm Espagnolette in the Middle of the Handle

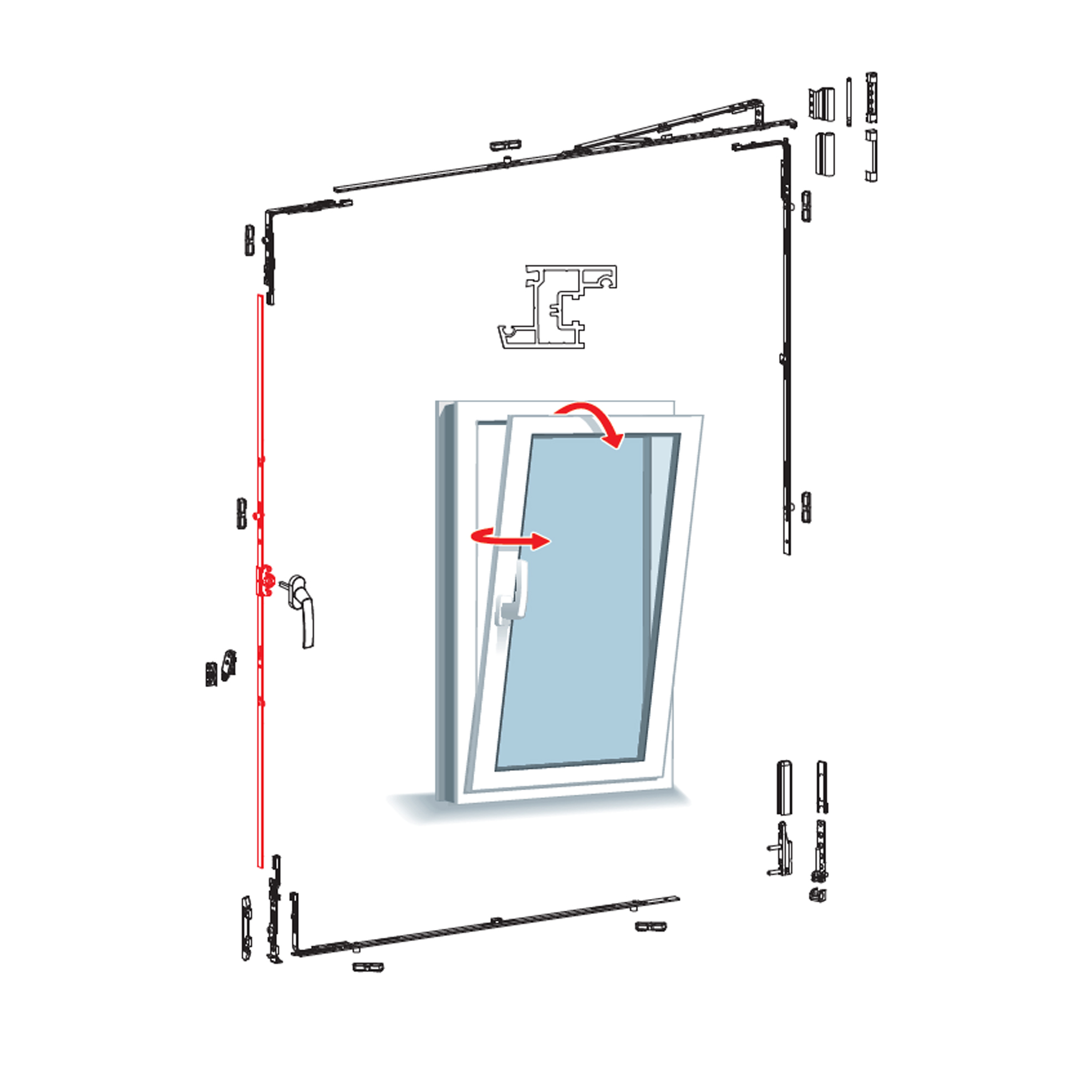

For the Top Link ; Can be used with Standard, Narrow, Security Pin, Security Narrow, Ventilated, Double Pin Corner Movement Devices
When using the Standard Series Corner Move Tool; Minimum Wing Height: 480mm,
When using the Narrow Series Corner Movement; Minimum Wing Height: 371mm.
For the Lower Link Side Tipping feature; It offers the opportunity to use with Lower Locking Hardware.
For the Bottom Connection Tip-over feature; Can be used with Safety Pin and Safety Pin Narrow Corner Movement Transmission.
Misuse Security; It provides safe use with its Wing Lifting and Misuse Safety Equipment.
Additional Locking The hardware supports thermal insulation by allowing the addition of additional locking.
Gasket Pressure Side; Provides the ability to change the seal pressure setting with a diameter of ±0.8 mm
Assembly; Provides time savings with easy installation. 3.9×25 YHB Coarse Tooth Espagnolette Screw Code: 449.339.025.001
Covering; YelkenCoat coating provides long-lasting corrosion protection.
Description
Usage Range Min: 262mm Max: 2400mm
Axis 15mm Arm Place Arm Place in the Middle
Body Type: Zamak Body
Security Level: Eccentric Pin/Safety Pin (HKE)
Misuse Safety Available Hardware Description
| Eccentric Pin (EP) Product Code | Security Pin (GP) Product Code | Pinless (X) Product Code | Amount | kg |
|---|---|---|---|---|
| – | – | 185.010.601.000 | 10 | 3.45 |
| – | – | 185.010.701.000 | 10 | 3.69 |
| 185.010.801.000 | 185.110.801.000 | – | 10 | 4.57 |
| 185.021.001.000 | 185.121.001.000 | – | 10 | 5.43 |
| 185.021.101.000 | 185.121.101.000 | – | 10 | 5.98 |
| 185.021.301.000 | 185.121.301.000 | – | 10 | 6.88 |
| 185.021.501.000 | 185.121.501.000 | – | 10 | 7.59 |
| 185.022.001.000 | 185.122.001.000 | – | 10 | 8.64 |
| 185.022.101.000 | 185.122.101.000 | – | 10 | 10.40 |
| GROUP | Usage Range | A | B | C | Misuse
Trustworthiness |
Screw | Opposite | |
|---|---|---|---|---|---|---|---|---|
| GR.00 | 480-700 | 630 | – | – | – | ✘ | – | – |
| GR.01 | 585-1000 | 730 | – | – | – | ✔ | 2 | – |
| GR.01 | 685-1100 | 830 | 120 | – | – | ✔ | 2 | 1 |
| GR.02 | 885-1300 | 1030 | 120 | – | – | ✔ | 4 | 2 |
| GR.02 | 985-1400 | 1130 | 120 | – | – | ✔ | 4 | 2 |
| GR.03 | 1185-1600 | 1330 | 120 | 300 | – | ✔ | 6 | 2 |
| GR.04 | 1385-1800 | 1530 | 272 | 272 | – | ✔ | 8 | 2 |
| GR.05 | 1585-2000 | 1730 | 322 | 322 | – | ✔ | 8 | 2 |
| GR.06 | 1985-2400 | 2130 | 372 | 372 | – | ✔ | 10 | 2 |
