Usage Range Min: 1574mm- Max: 2400mm
Axis 30mm/40mm
Armhole Armhole in the Middle
Body Type: Zamak Body
Security Level Additional Lock – Eccentric Pin/Security Pin
(HKE) Misuse Safety Available

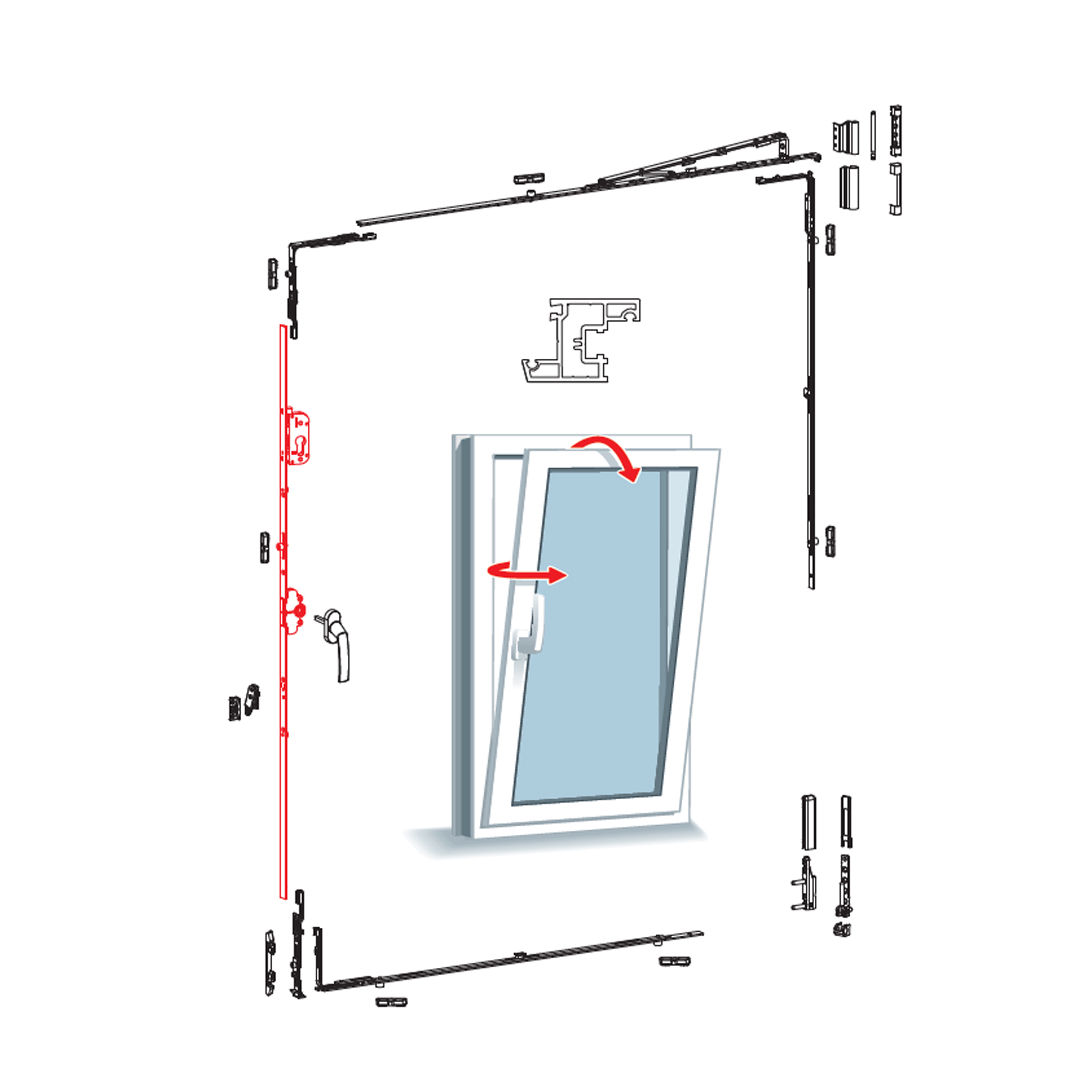

Hardware Description
For the Top Link;
Available with Standard, Narrow, Safety Pin, Safety Narrow, Ventilated, Double Pin Corner Motion transmission (See Page 30)

When Standard Series Corner Movement Transmission is used; Minimum Wing Height is: 480mm.

When Narrow Series Corner Movement Transmission is used; Minimum Wing Height is 371 mm.

For the Lower Link Side Tipping feature;
Provides the opportunity to use with Lower Locking Hardware. (See Page 39)

For the Bottom Connection Tip-over feature;
Can also be used with Safety Pin and Narrow Corner Movement with Safety Pin, (See Page 30)

Misuse Security;
It provides safe use with its Wing Lifting and Misuse Safety Equipment.

Additional Locking
The hardware supports thermal insulation by allowing the addition of additional locking.

Gasket Pressure Ayan;

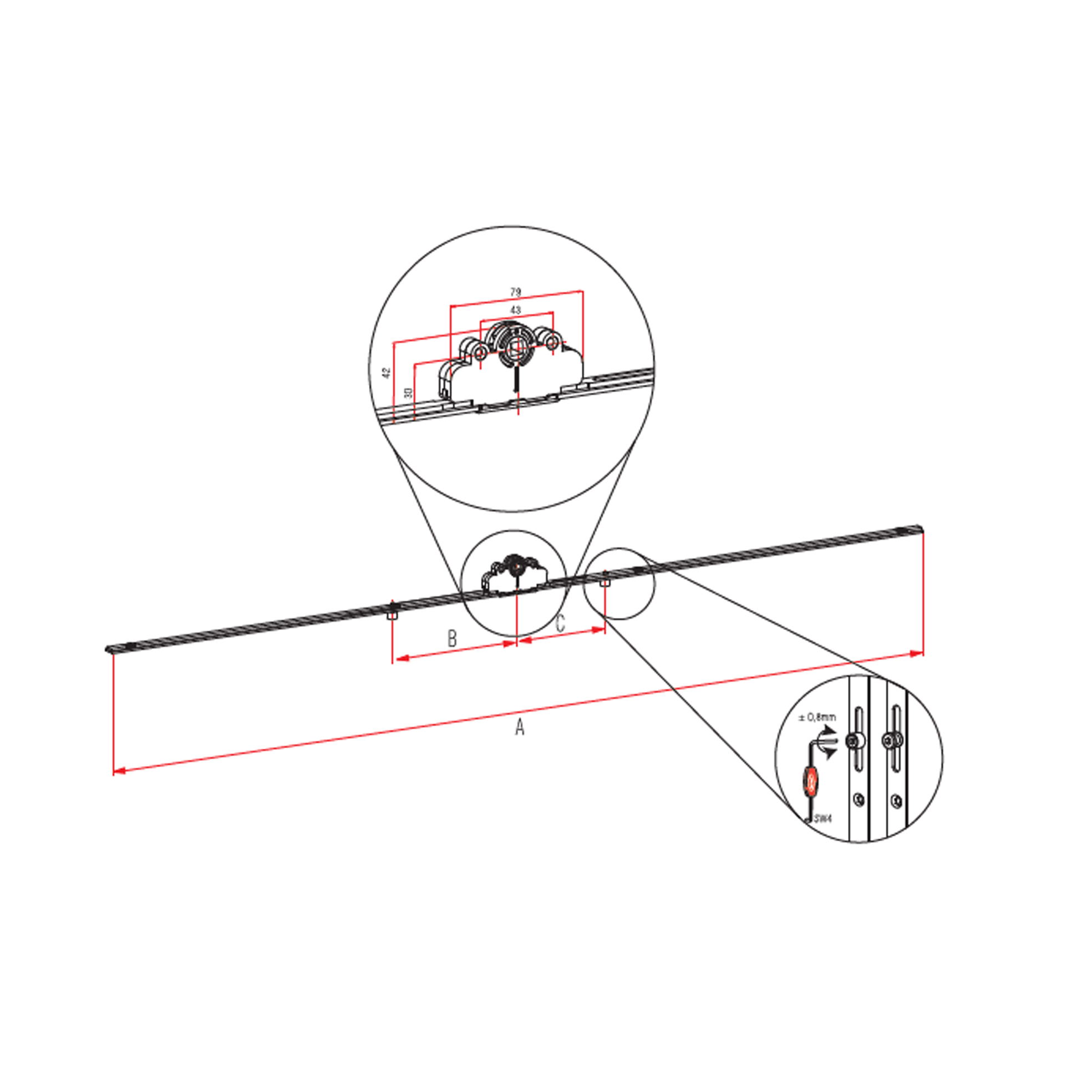

Provides the ability to change the seal pressure setting with a diameter of ±0.8 mm

Assembly:
It saves time with easy installation.
3.9×25 YHB Coarse Toothed Espagnolette Screw Code: 449.339.025.001

Covering;
It has long-lasting corrosion protection with YelkenCoat coating.
