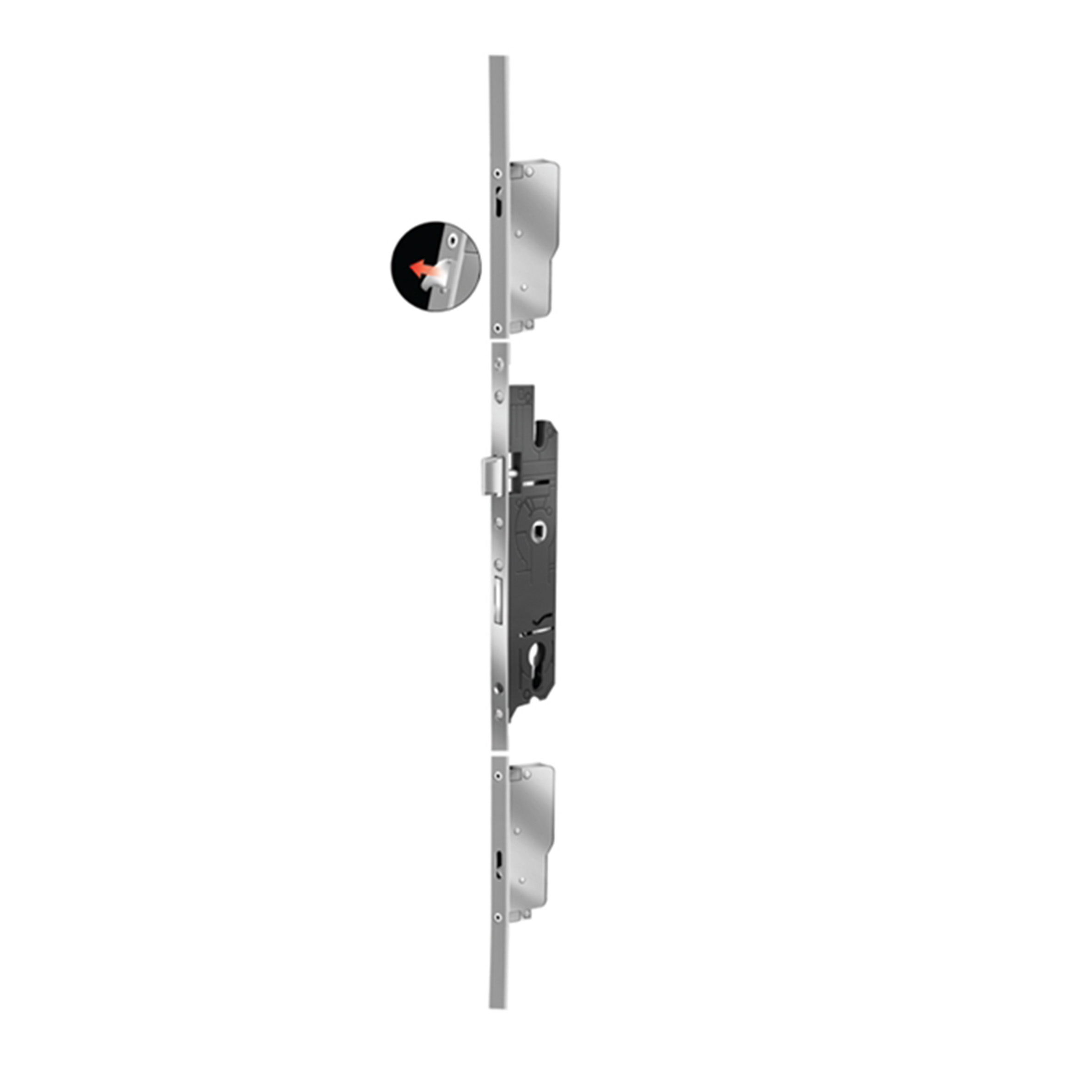

92/35mm Lever Driven (Hook)
Hardware Technical Details
KY – Wing Height 1600mm 2400mm
GT – Body Type Plastic
Body Sheet Metal Cover
Working Method: Handle Operated - Hook
Arm Center: 92mm
Axis 35
Description
Barreled Tongue (B+/D+)
Eccentric Pin and Safety Pin Order Details
| Code | Explanation | Amount | kg |
|---|---|---|---|
| 171.180.392.135 | 1800/92/35 K.isp,PKT,B+D+,EP+,Hooked | 10 | 11.34 |
| 171.200.392.135 | 2000/92/35 K.isp,PKT,B+D+,EP+,Hooked | 10 | 12.41 |
| 171.180.392.235 | 1800/92/35 K.isp,PKT,B+D+,GP+,Hooked | 10 | 11.34 |
| 171.200.392.235 | 2000/92/35 K.isp,PKT,B+D+,GP+,Hooked | 10 | 12.41 |
Technical Details
| Usage Range | A | B | C | D | TO | F | Screw | Opposite |
|---|---|---|---|---|---|---|---|---|
| 1800-2000 | 1800 | 431 | 471 | 748 | 737 | – | 12 | 4 |
| 2000-2200 | 2000 | 431 | 471 | 748 | 737 | – | 12 | 4 |
