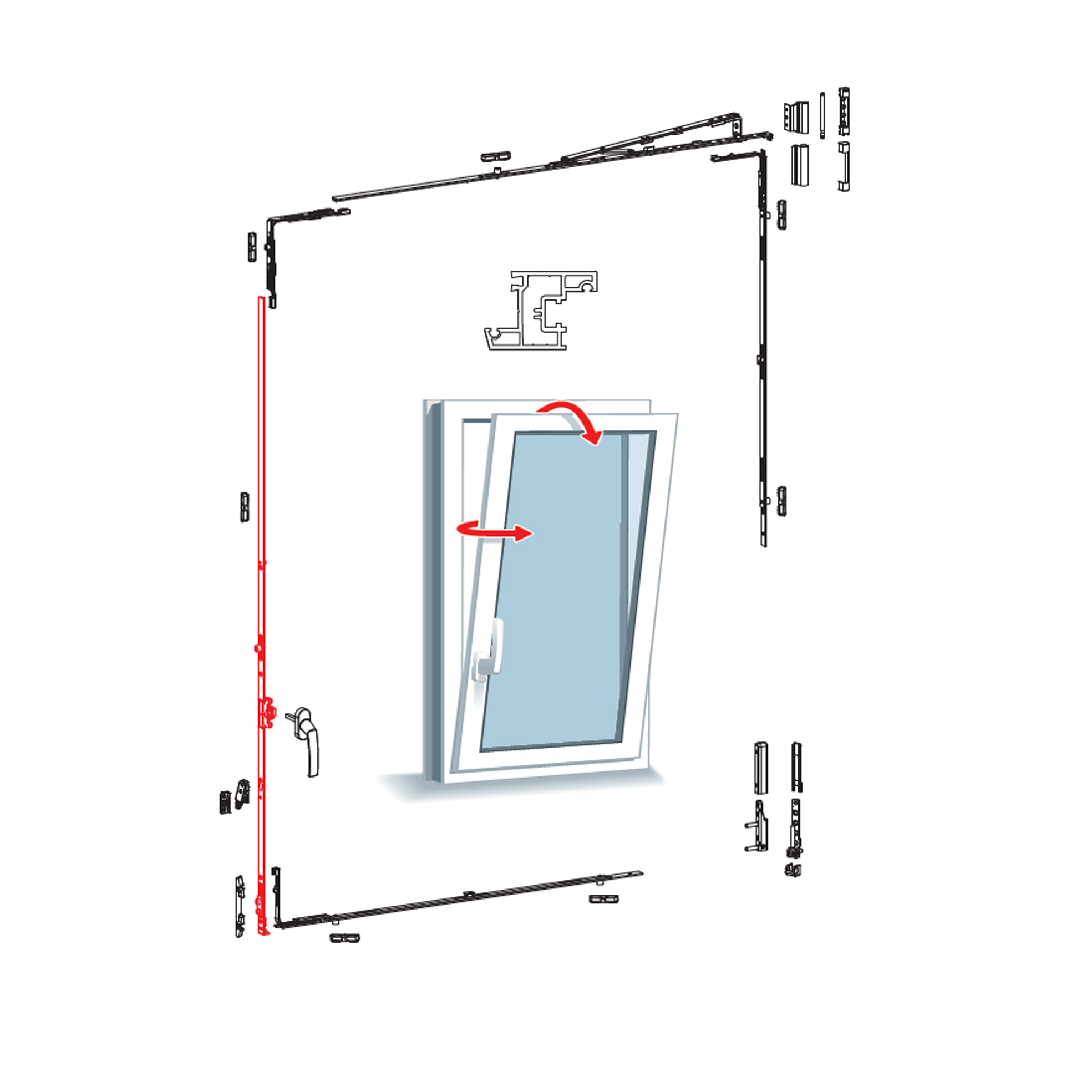

15mm Fixed Handle Espagnolette
For the upper connection; Standard, Narrow, Security Pin, Security Narrow, Ventilated, Double Pin Corner Movement Spring is available (See Catalogue Page 30)
Misuse Safety: It provides safe use with its wing lifting and Misuse Safety Equipment.
Seal Pressure Adjustment; Allows changing the pressure setting of the seal of ±0.8 mm
Installation; Saves Time with Easy Installation.
3.9×25 YHB Coarse Toothed Espagnolette Screw Code: 449.339.025.001
Coating: YelkenCoat coating provides long-lasting protection. It can be used with its hardware. (See Catalog Page 40)
For the Lower Connection Side Transfer feature, it offers the possibility of using the Lower Locking Hardware. (See Catalogue Page 40)
Category: Espagnolettes with fixed handles
Description
Hardware Technical Details
Usage Range: Min: 286mm Max: 2400mm
Axis 15mm
Armrest: Fixed Armrest Body Type Zamak
Body Security Level: Eccentric Pin/Safety Pin
(HKE) Misuse Safety Available
Eccentric Pin (EP) Product Code | Security Pin (GP) Product Code | Pinless(X) Product Code | Amount | kg |
---|---|---|---|---|
– | – | 185.030.401.000 | 10 | 3,45 |
– | – | 185.030.501.000 | 10 | 3,45 |
185.030.701.000 | 185.130.701.000 | – | 10 | 3,69 |
185.040.901.000 | 185.140.901.000 | – | 10 | 4,57 |
185.041.101.000 | 185.141.101.000 | – | 10 | 5,43 |
185.041.301.000 | 185.141.301.000 | – | 10 | 5,98 |
185.041.501.000 | 185.141.501.000 | – | 10 | 6,88 |
185.041.701.000 | 185.141.701.000 | – | 10 | 7,59 |
185.041.901.000 | 185.141.901.000 | – | 10 | 8,64 |
185.042.101.000 | – | – | 10 | 10,4 |

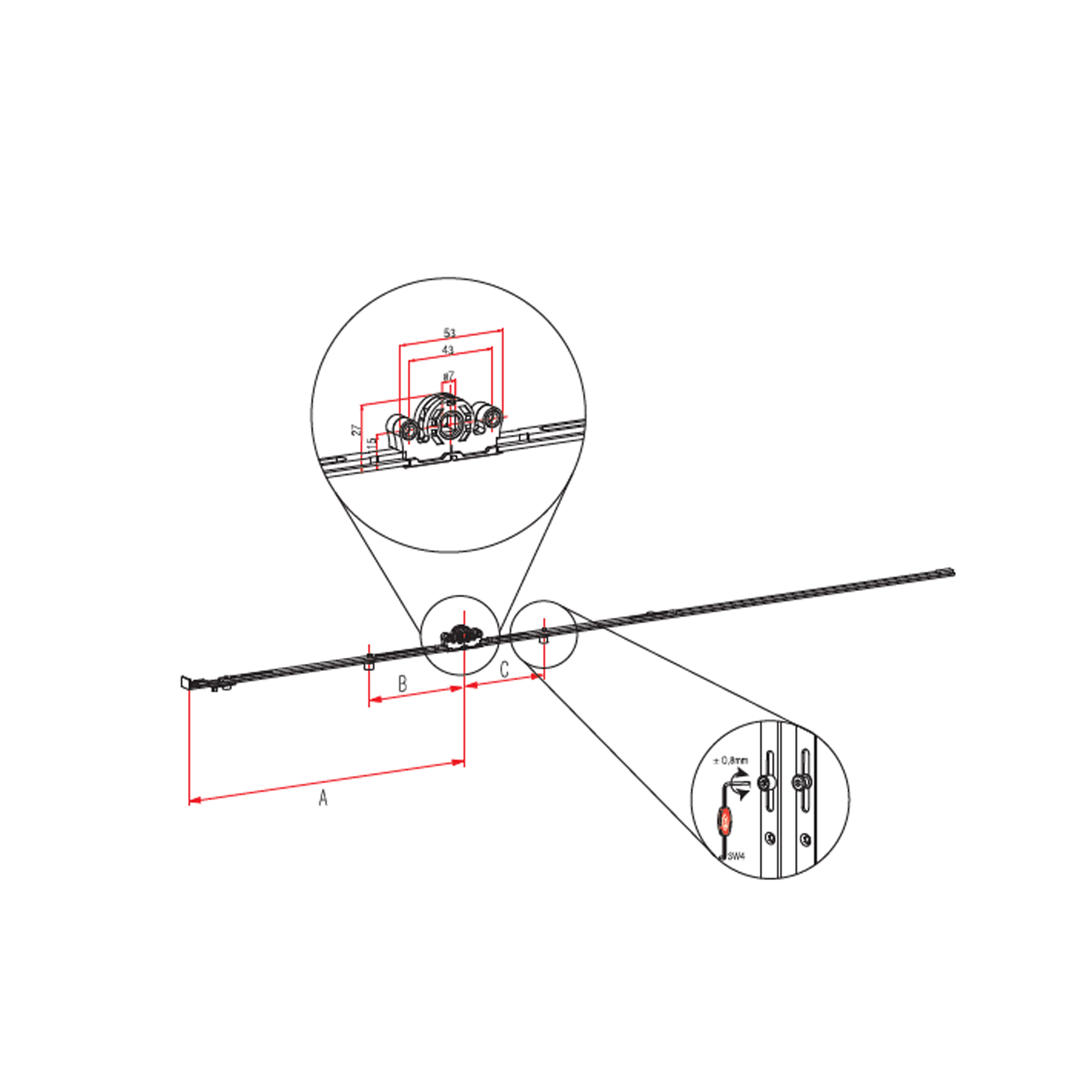

GROUP | KA | A | B | C | D | Misuse Safety | Screw | Opposite |
---|---|---|---|---|---|---|---|---|
GR:01 | 295/395-600 | 155 | – | – | – | 🟤 | 2 | – |
GR:02 | 501-700 | 200 | – | – | – | ✔️ | 2 | – |
GR:03 | 701-900 | 250 | – | – | – | ✔️ | 4 | 1 |
GR:04 | 901-1100 | 400 | – | – | – | ✔️ | 4 | 1 |
GR:05 | 1101-1300 | 500 | – | – | – | ✔️ | 6 | 2 |
GR:06 | 1301-1500 | 600 | – | – | – | ✔️ | 6 | 2 |
GR:07 | 1501-1700 | 700 | – | – | – | ✔️ | 8 | 2 |
GR:08 | 1701-1900 | 900 | – | – | – | ✔️ | 8 | 2 |
GR:09 | 1901-2100 | 980 | – | – | – | ✔️ | 10 | 3 |
GR:10 | 2101-2350 | 980 | – | – | – | ✔️ | 10 | 3 |
