Corner Movement Transmission (Micro Ventilation)

Güvenlik Seviyesi: Eksantirk Pimli

Frame Wing Scissor Connection; Standart ve Önce Devir Sonra Aç Kasa Kanat Makas le bağlantı yapılabilir

İlave Kilitleme Bağlantısı; Donanım llave Kilitleme eklenmesine olanak sağlayarak ısı yalıtımına destek olur.

İspanyolet Bağlantısı; 7,5mm, 15mm, 30mm, 40mm

Connection can be made with Middle Handle (KYO), Fixed Handle (KYS) Espagnolette and Double Wing Espagnolette.

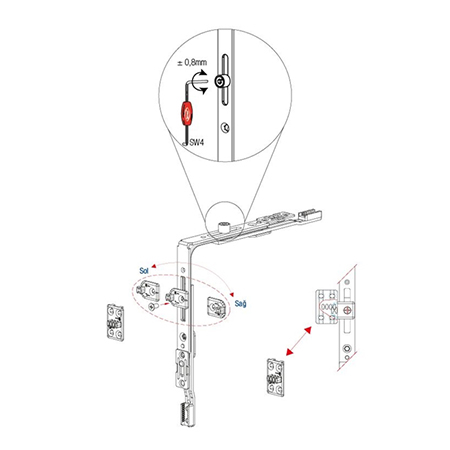

Seal Pressure Adjustment; Allows changing the seal pressure setting within a diameter of ±0.8 mm

Assembly; Saves time with easy assembly.

3.9×25 YHB Coarse Toothed Espagnolette Screw Code: 449.339.025.001

Coating; It has long-lasting corrosion protection with YelkenCoat coating.

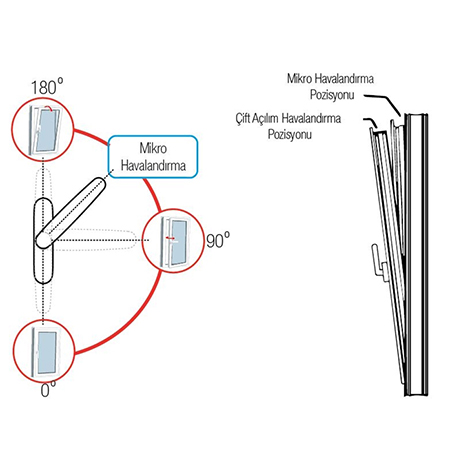

Possibility of use in 4 positions; 1. Closed Position

2. Single Open Position

3. Double Opening Transom Micro Ventilation Position

4. Double Opening Transom Position
