Corner Movement Transmission (2 Pin)

Security Level:

Eccentric Pin + Security

Pin Eccentric Pin+Eccentric Pin (Optional)

Security Pin + Security Pin (Optional)

Hardware Description

Havalandırma Opsiyonu

Havalandırma Köşe Hareket etim Karşılığı kullanıldığı takdirde havalandırma özelliği kazandınlabilir

9 Axle 189.643,003,000 13 Axle 189.642,004.000

Frame Wing Scissors Connection; Connection can be made with Standard and First Turn Then Open Frame Wing Scissors

Additional Locking Connection; Supports thermal insulation by allowing additional locking hardware to be added.

Espagnolette Connection; 7.5mm, 15mm, 30mm, 40mm

Connection can be made with Middle Handle (KYO), Fixed Handle (KYS) espagnolette and Double Wing espagnolette.

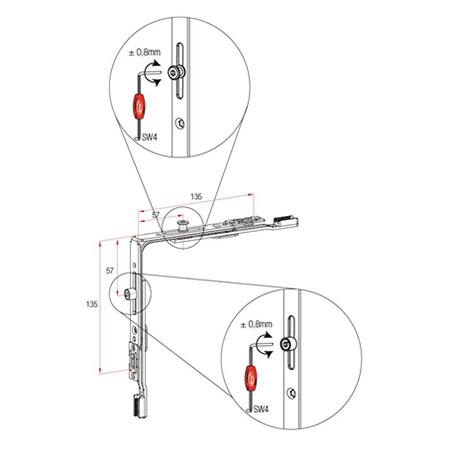

Seal Pressure Adjustment; Allows changing the seal pressure setting within a diameter of ±0.8 mm

Assembly; Saves time with easy assembly, 3.9×25

YHB Coarse Toothed Espagnolette Screw Code: 449,339,025,00

1 Coating; It has long-lasting corrosion protection with YelkenCoat coating,
