Casement Wing Scissors

Usage Range: Min: 286mm-Max: 1600mm
Security Level Eccentric Pin – Security Pin
Forward Clutch on Wide Wings;

The Wing Scissors group helps to prevent the problem of wide wings not closing willingly, thanks to its front technical feature, it can easily close the wing by gripping it from the front of 25 mm.

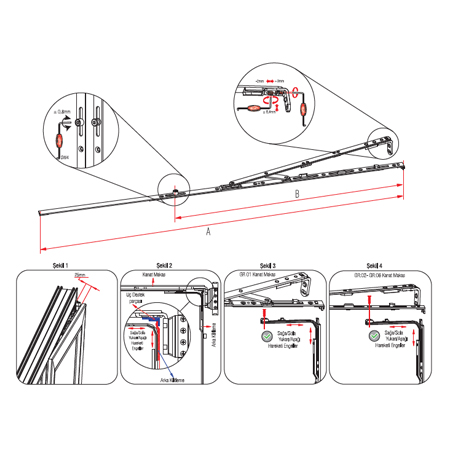

(See Figure 1)

• Movement Limitation;

In the Wing Scissor assembly with Rear Locking, the end support piece on the Wing Scissor allows the Rear Locking to limit its movement to the right-left, up-down, and downwards as shown in “Figure 2”.

• Additional screwing;

Rear Locking,1 'As shown in Figure 3-4”, the profile can be fixed by screwing it from the end, specifically for the Fornax product, independently of the Wing Scissors, and also limits the movement of the Rear Locking to the Right-Left and Up-A,'.x.

• Corner Connections;

Available with Standard, Narrow, Safety Pin, Safety Narrow, Ventilated, Double Pin Corner Action Spring (See Page 30)

Standard Series Corner Movement Transmission distribution; Minimum Wing Width: 395mm. Narrow Series Corner Movement distribution; Minimum Wing Width: 286mm.

• Hinge Connections;

For Top Hinge Connection, 9-20 mm, 10-20 mm, 13-20 mm, 14-22 mm, 13-22 mm can be connected with the Wing Top Hinge. (See Page 46)

Divine Locking

The hardware supports the insulation of the interior by providing additional locking options. Gasket Pressure Adjustment;

Allows the pressure setting of the ±0.8 mm seal to be changed

• Assembly;

Ko0y saves time with assembly.

3.9×25 YHB Coarse Toothed Espagnolette Screw, Code: 449.339.025.001

• Coating;

It has long-lasting corrosion protection with YelkenCoat coating.
