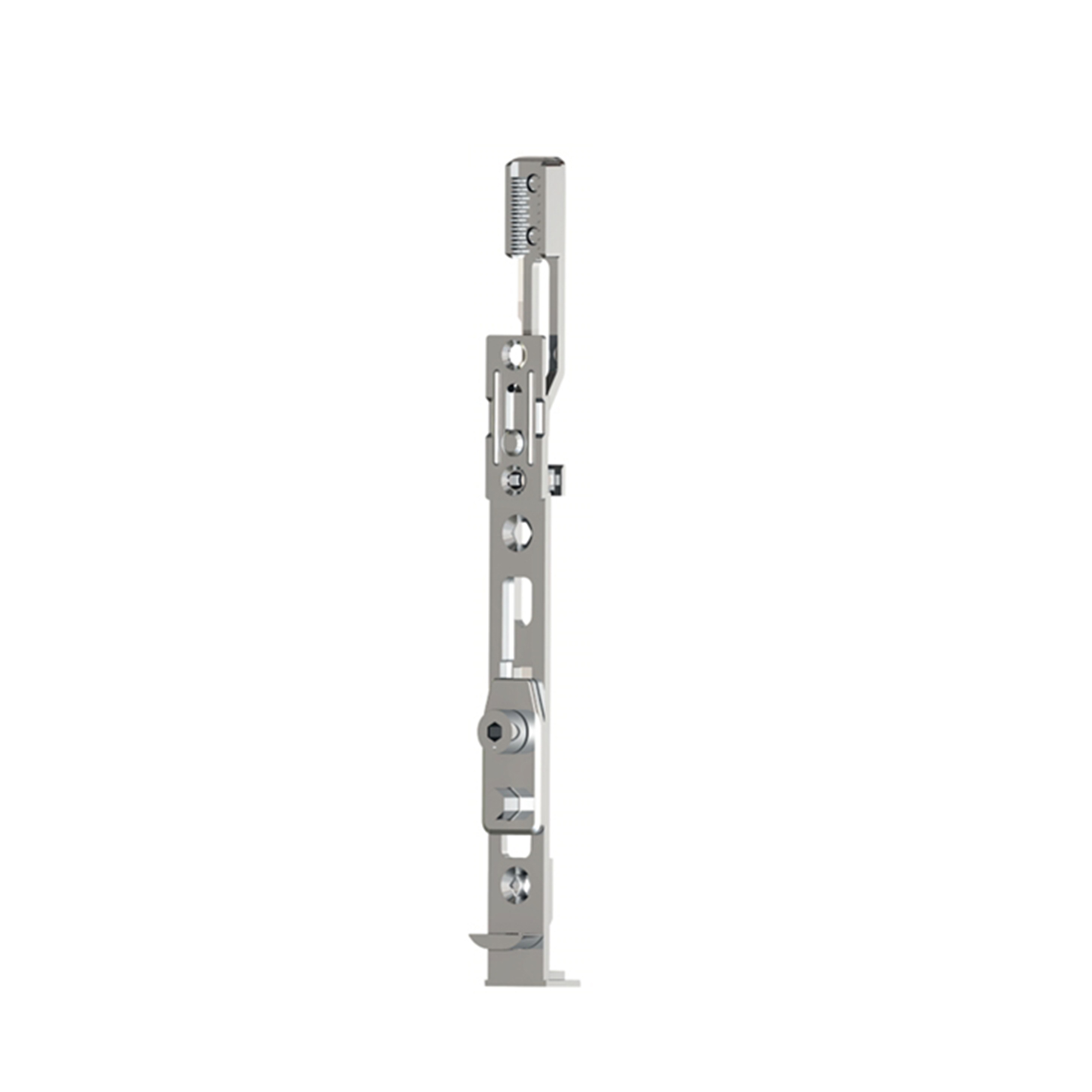

Bottom Locking

Hardware Technical Details
Area of Use: Side Tilting Double Opening
Security Level: Eccentric Pin
Hardware Description
Print Stabilization;
Specially designed on the lower locking piece

There is a Spring Joint Piece placed; this Spring Joint Piece is the part of the sash that is in the transom position and that is the part of the sash that is in the frame.
It stabilizes the pressure. It prevents water and air leakage (See “Figure 5”)
Spanish Connection;
Additional Locking Espagnolette, 7.5mm, 15mm, 30mm, 40mm, can be connected with Middle Handle (KYO) Espagnolette. (See Page 23)

Center Locking Connection; Center locking is available, (See Page 39)

Provisions;
A wide range of responses to choose from based on your profile
Double Claw 9mm Right/Left 189.110.001.000
Double Claw 13mm Right/Left 189.120.001.000
9mm Right/Left 189.170.001.000
13mm Right/Left 189.160.001.000
9+1mm Right Left 189,190,001,000
13+1mm Right Left 189.180.001.000
13/22 Thyysen Right/Left 189,161,001,000

compatible with their counterparts. (See Page 50)
Gasket Pressure Adjustment;
Provides the ability to change the seal pressure setting with a diameter of ±0.8 mm
Assembly;
It saves time with easy installation.
3.9×25 YHB Coarse Toothed Espagnolette Screw Code: 449.339.025.001
– Coating;
It has long-lasting corrosion protection with YelkenCoat coating.
