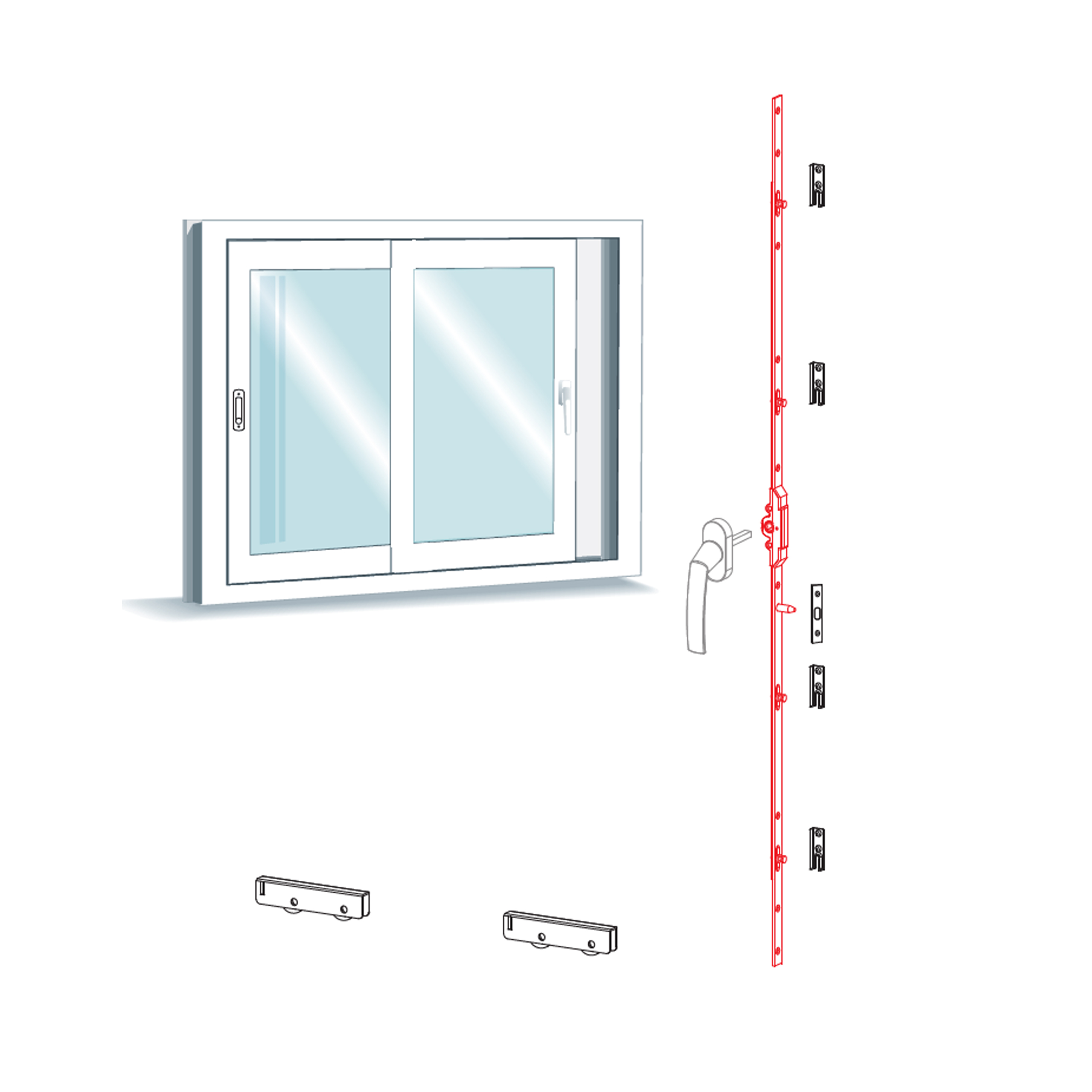

7.5mm espagnolette
Usage Range Min: 200mm Max: 2100mm
Axis 7mm
Armhole: Middle Armhole
Body Type: Zamak
Security Level: EP/GP
Description
Order Details
| Code | Explanation | Amount | kg |
|---|---|---|---|
| 110.040.315.200 | 400/15mm Simple Sliding Espagnolette | 20 | – |
| 110.060.315.200 | 600/15mm Simple Sliding Espagnolette | 20 | – |
| 110.080.315.200 | 800/15mm Simple Sliding Espagnolette | 20 | – |
| 110.100.315.200 | 1000/15mm Simple Sliding Espagnolette | 20 | – |
| 110.120.315.200 | 1200/15mm Simple Sliding Espagnolette | 20 | – |
| 110.140.315.200 | 1400/15mm Simple Sliding Espagnolette | 20 | – |
| 110.160.315.200 | 1600/15mm Simple Sliding Espagnolette | 20 | – |
| 110.180.315.200 | 1800/15mm Simple Sliding Espagnolette | 20 | – |
| 110.200.315.200 | 2000/15mm Simple Sliding Espagnolette | 20 | – |

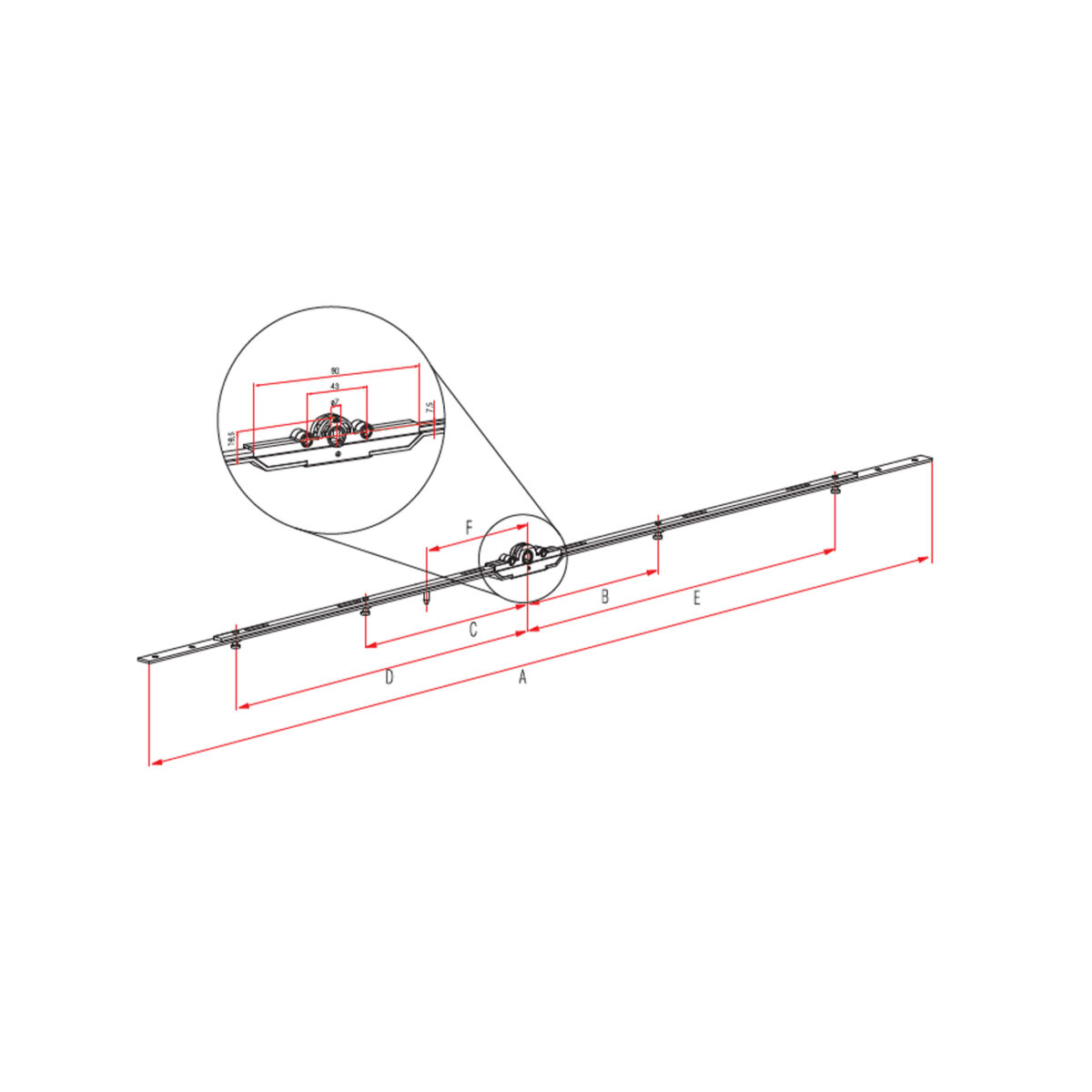

Technical Details
| Usage Range | A | B | C | D | TO | F | Screw | Opposite |
|---|---|---|---|---|---|---|---|---|
| 600-800 | 600 | – | – | 175 | 175 | 106,5 | 8 | 2 |
| 800-1000 | 800 | – | – | 275 | 275 | 106,5 | 8 | 2 |
| 1000-1200 | 1000 | 94 | – | 375 | 375 | 131,5 | 10 | 3 |
| 1200-1400 | 1200 | 94 | – | 475 | 475 | 166 | 10 | 3 |
| 1400-1600 | 1400 | 266 | 266 | 575 | 575 | 166 | 10 | 3 |
| 1600-1800 | 1600 | 300 | 390 | 675 | 675 | 200 | 10 | 3 |
| 1800-2000 | 1800 | 300 | 390 | 775 | 775 | 200 | 12 | 4 |
| 2000-2100 | 2000 | 300 | 390 | 875 | 875 | 200 | 12 | 4 |
