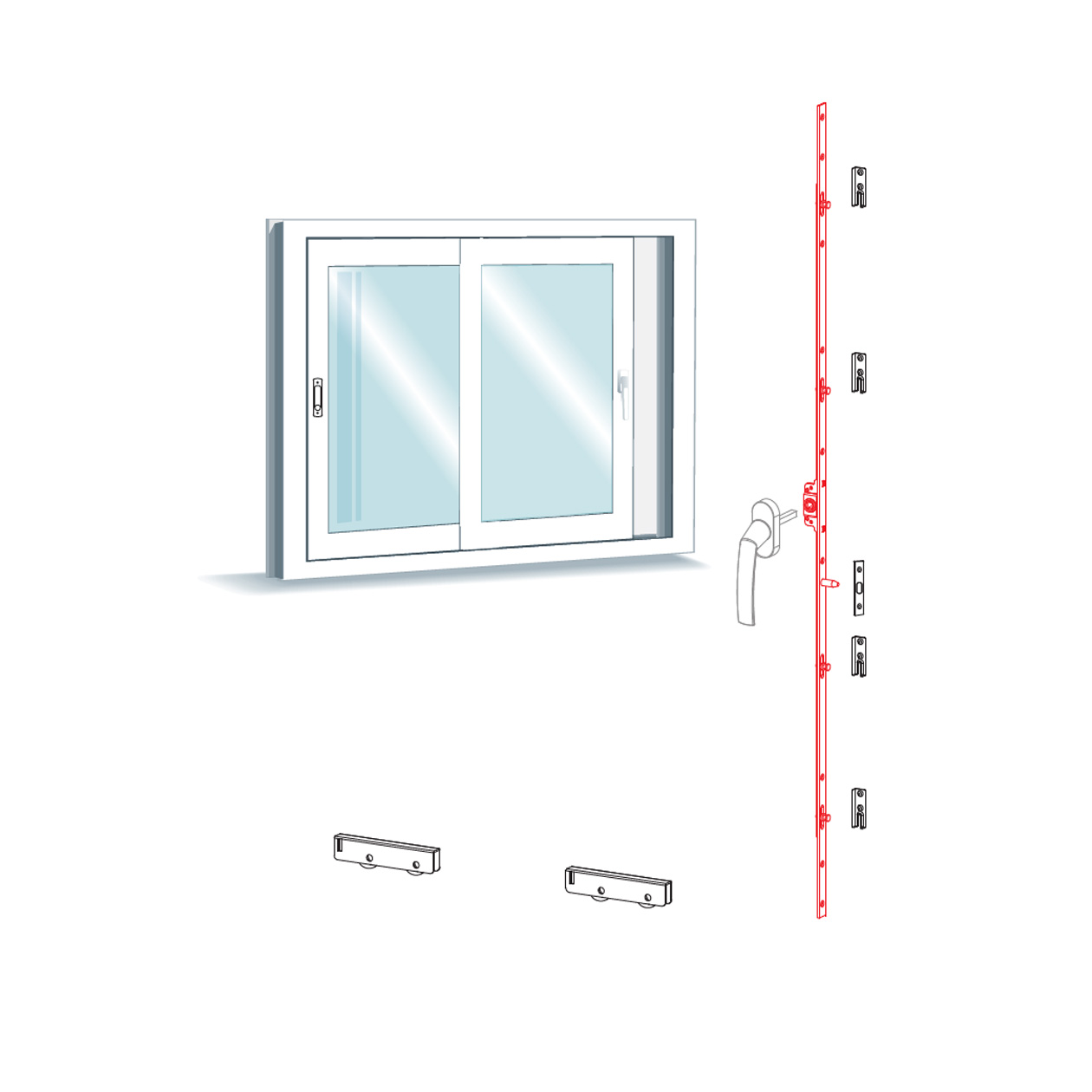

15mm Espagnolette with Steel Body
Usage Range Min: 200mm Max: 2100mm
Axis 15mm
Armhole: Middle Armhole
Body Type: Sheet Metal Body
Security Level: EP/GP
Response: 2
Description
Order Details
| Code | Explanation | Amount | kg |
|---|---|---|---|
| 115.040.315.100 | 400/15mm Simple Sliding Espagnolette | 50 | – |
| 115.060.315.100 | 600/15mm Simple Sliding Espagnolette | 50 | – |
| 115.080.315.100 | 800/15mm Simple Sliding Espagnolette | 25 | – |
| 115.100.315.100 | 1000/15mm Simple Sliding Espagnolette | 25 | – |
| 115.120.315.100 | 1200/15mm Simple Sliding Espagnolette | 25 | – |
| 115.140.315.100 | 1400/15mm Simple Sliding Espagnolette | 25 | – |
| 115.160.315.100 | 1600/15mm Simple Sliding Espagnolette | 25 | – |
| 115.180.315.100 | 1800/15mm Simple Sliding Espagnolette | 25 | – |
| 115.200.315.100 | 2000/15mm Simple Sliding Espagnolette | 25 | – |

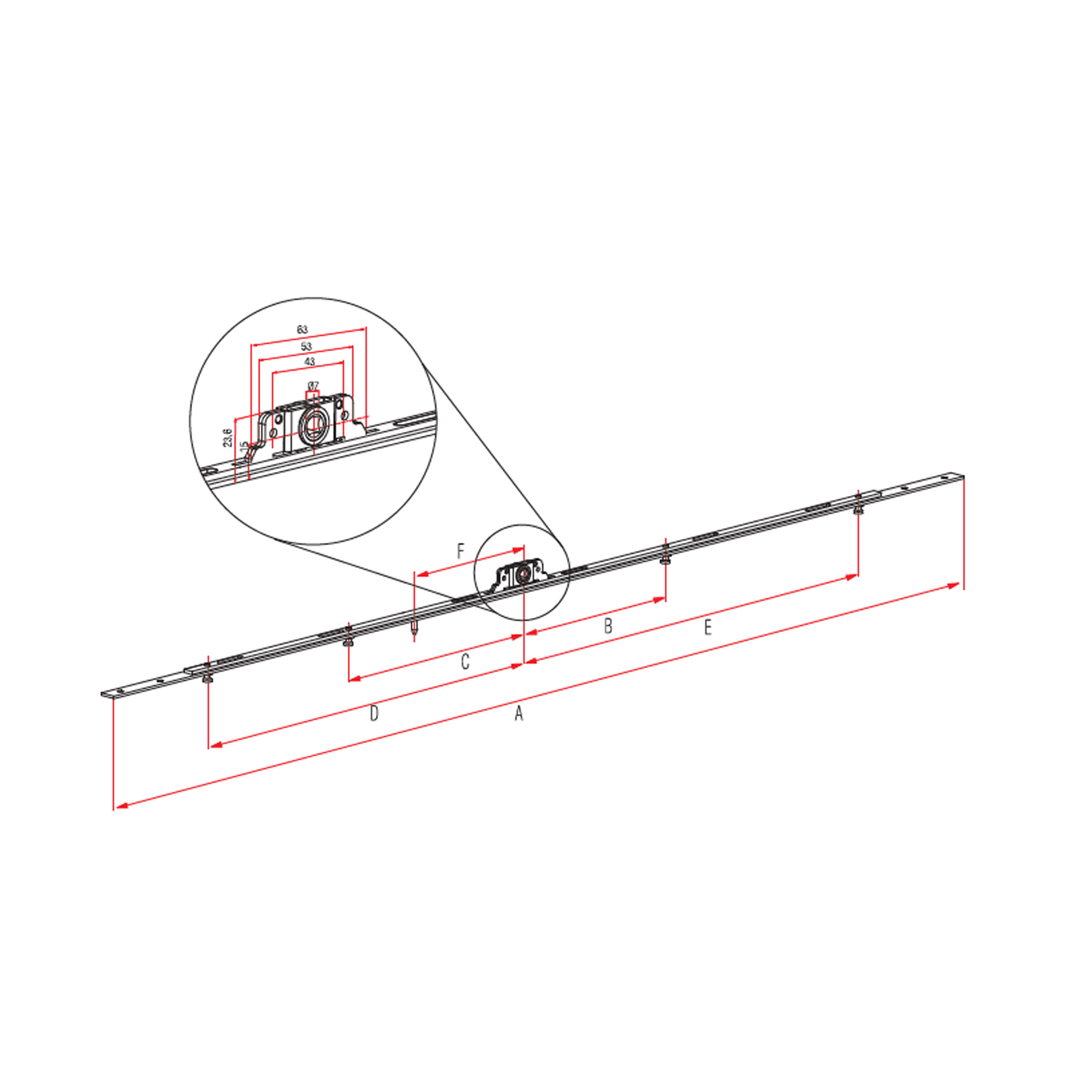

Technical Details
| Usage Range | A | B | C | D | TO | F | Screw | Opposite |
|---|---|---|---|---|---|---|---|---|
| 600-800 | 600 | – | – | 175 | 175 | 106,5 | 8 | 2 |
| 800-1000 | 800 | – | – | 275 | 275 | 106,5 | 8 | 2 |
| 1000-1200 | 1000 | 94 | 94 | 375 | 375 | 131,5 | 10 | 3 |
| 1200-1400 | 1200 | 94 | 94 | 475 | 475 | 166 | 10 | 3 |
| 1400-1600 | 1400 | 266 | 266 | 575 | 575 | 166 | 10 | 3 |
| 1600-1800 | 1600 | 300 | 300 | 675 | 675 | 200 | 12 | 4 |
| 1800-2000 | 1800 | 300 | 300 | 775 | 775 | 200 | 12 | 4 |
| 2000-2100 | 2000 | 300 | 300 | 875 | 875 | 200 | 12 | 4 |
