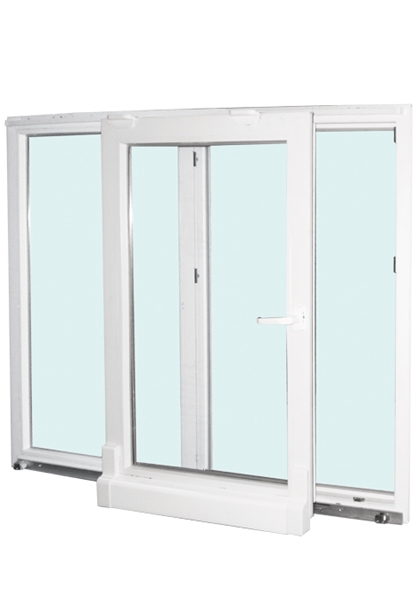

Classic Parallel Tilting Sliding System

Sliding Type ; Classic

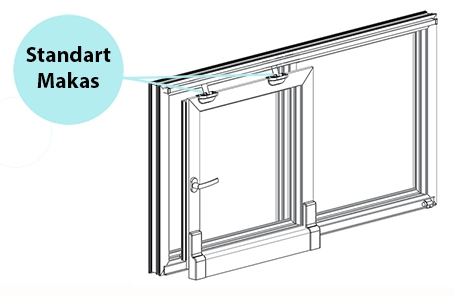

Scissor Type ; Standard Scissor

Carriage Capacity; 130 Kg

Axle ; 9mm - 13mm

Vertical Usage Range ; Min. 885mm Max; 2400mm

Horizontal Usage Range ; Min. 710mm Max; 1600mm

Assembly ;

Saves time with easy assembly.

3.9x25 YHB Rare Toothed Espagnolette Screw Code: 449.339.025.001

Coating ;

It has long-lasting corrosion protection with YelkenCoat coating.

Certificate ;

Complies with Tse Standards.

Our advantages;

- Possibility to use two different types of scissors, luxury and standard.

- Carrying capacity for wings up to 130 Kg.

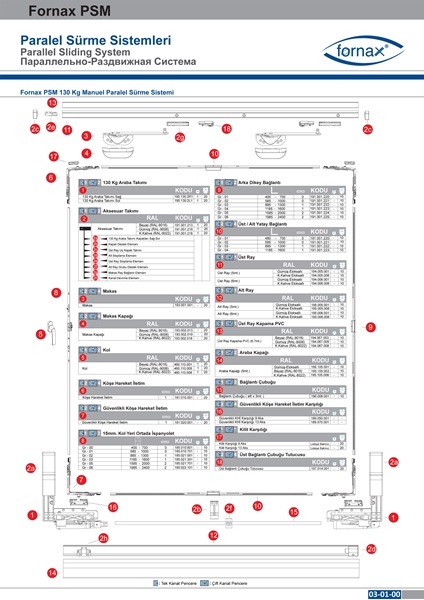

Rail Set* Contents;

Includes Lower Rail, Upper Rail, Upper Rail Closing Profile, Lower Car Cover and Connection Shaft.

**Accessory Set Content;

130 Kg Car Set, 130 Kg Car Cover Set, Cover Support Element, Upper Rail End Cover Set, Lower Stopping Element, Upper Rail Stopping Element, Lower Rail Group Support Element, Scissor Rail Connection Element, Wing Turning Element, Upper Shaft Support Element, Scissor and Cover, Arm (Optional), Corner Movement Transmission, Semi-Automatic Corner Movement Transmission, Semi-Automatic Lower Locking Counterpart, Upper Connection Shaft Holder.
