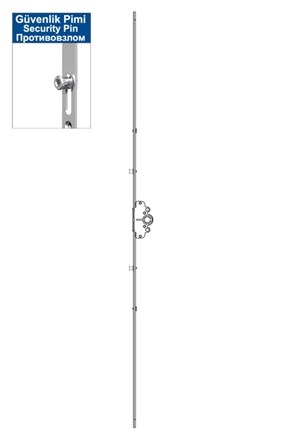

Picture of 25 mm / 30 mm / 40 mm Espagnolette (Centred Handle)

Teknik Çizim Bulunmamaktadır.

3D Görsel Bulunmamaktadır.

25 mm / 30 mm / 40 mm Espagnolette (Centred Handle)

Hardware Technical Details

Range of use : Min: 262mm - Max: 2400mm

Axis : 25mm/30mm/40mm

Handles location : Centred Handle

Body Type : Zamac body

Security Level : w/Eccentric-Security Pin

Faulty usage / sash adjustment : Available

Hardware Description

Upper Extension ;

Standard, small, Safety Pin, security small, ventilated, double pin

corner transmission is usable (see page 30)

By using the standard seri of the corner tranmission,

is the hight of the sash minimum: 480mm.

If you use the small corner transmission; will the sash heighment be 371mm.

For the features of the Bottom Extension (Vertical)

Bottom lock hardware offers the ability to use the equipment. (see page 39)

For the features of the Bottom Extension (bottom regulated)

The safety pins and security corner transmission offers the ability to use the equipment.

(see page 30)

The security of the 'Faulty usage - sash adjustment';

Faulty usage and sash lifting device, provides increased safety.

Connection Gear

The add of this equipment assists and provid thermal insulation.

To regular the gasket pressure;

You can change the gasket pressure in a level range of +/- 0,8mm

Assembling;

It helps to easy the installation and save much time.

3,9x25 Rare serrated espagnolette screws code: 449.339.025.001

Coating;

YelkenCoat gives longer durability and corrosion protection to the hardware

Kapat

Aç

Ürün-Açıklama Seçenekler Fiyat Bilgisi Adet - Sepete Ekle

25 mm / 30 mm / 40 mm Espagnolette (Centred Handle) 628/25

P-,Gr00:270/480-700 G:1395-1400 Y:480-700

SKU:	185710601000

Brand

25 mm / 30 mm / 40 mm Espagnolette (Centred Handle) 628/25

P-,Gr00:270/480-700 G:1395-1600 Y:480-700

SKU:	185710601000

Brand

25 mm / 30 mm / 40 mm Espagnolette (Centred Handle)

P-,Gr00:270/480-700 G:395-600 Y:480-700

SKU:	185710601000

Brand

25 mm / 30 mm / 40 mm Espagnolette (Centred Handle) 628/25

P-,Gr00:270/480-700 G:400-650 Y:480-700

SKU:	185710601000

Brand

25 mm / 30 mm / 40 mm Espagnolette (Centred Handle) 628/25

628/25 P-,Gr00:270/480-700 G:595-800 Y:480-700

SKU:	185710601000

Brand

628/25 Espagnolette (Centred Handle)

25 mm / 30 mm / 40 mm Espagnolette (Centred Handle) İsp P-,Gr00:270/480-700 G:795-1000 Y:480-700

SKU:	185710601000

Brand

25 mm / 30 mm / 40 mm Espagnolette (Centred Handle) 628/25

P-,Gr00:270/480-700 G:795-800 Y:480-700

SKU:	185710601000

Brand

25 mm / 30 mm / 40 mm Espagnolette (Centred Handle) 628/25

P-,Gr00:270/480-700 G:995-1200 Y:480-700

SKU:	185710601000

Brand

1130/25 Espagnolette (Centred Handle)

2EP+,Gr02-2:985-1400 G:1195-1400 Y:985-1400

SKU:	185711101000

Brand

1130/25 Espagnolette (Centred Handle)

2EP+,Gr02-2:985-1400 G:1395-1600 Y:985-1400

SKU:	185711101000

Brand

1130/25 Espagnolette (Centred Handle)

İsp,2EP+,Gr02-2:985-1400 G:395-600 Y:985-1400

SKU:	185711101000

Brand

1130/25 Espagnolette (Centred Handle)

2EP+,Gr02-2:985-1400 G:400-650 Y:985-1400

SKU:	185711101000

Brand

1130/25 25 mm Espagnolette (Centred Handle)

2EP+,Gr02-2:985-1400 G:595-800 Y:985-1400

SKU:	185711101000

Brand

1130/25 Espagnolette (Centred Handle)

1130/25 İsp,2EP+,Gr02-2:985-1400 G:995-1200 Y:985-1400

SKU:	185711101000

Brand

Kapat

Aç

25 mm / 30 mm / 40 mm Espagnolette (Centred Handle) 628/25

P-,Gr00:270/480-700 G:1395-1400 Y:480-700

SKU:	185710601000

Brand

25 mm / 30 mm / 40 mm Espagnolette (Centred Handle) 628/25

P-,Gr00:270/480-700 G:1395-1600 Y:480-700

SKU:	185710601000

Brand

25 mm / 30 mm / 40 mm Espagnolette (Centred Handle)

P-,Gr00:270/480-700 G:395-600 Y:480-700

SKU:	185710601000

Brand

25 mm / 30 mm / 40 mm Espagnolette (Centred Handle) 628/25

P-,Gr00:270/480-700 G:400-650 Y:480-700

SKU:	185710601000

Brand

25 mm / 30 mm / 40 mm Espagnolette (Centred Handle) 628/25

628/25 P-,Gr00:270/480-700 G:595-800 Y:480-700

SKU:	185710601000

Brand

628/25 Espagnolette (Centred Handle)

25 mm / 30 mm / 40 mm Espagnolette (Centred Handle) İsp P-,Gr00:270/480-700 G:795-1000 Y:480-700

SKU:	185710601000

Brand

25 mm / 30 mm / 40 mm Espagnolette (Centred Handle) 628/25

P-,Gr00:270/480-700 G:795-800 Y:480-700

SKU:	185710601000

Brand

25 mm / 30 mm / 40 mm Espagnolette (Centred Handle) 628/25

P-,Gr00:270/480-700 G:995-1200 Y:480-700

SKU:	185710601000

Brand

1130/25 Espagnolette (Centred Handle)

2EP+,Gr02-2:985-1400 G:1195-1400 Y:985-1400

SKU:	185711101000

Brand

1130/25 Espagnolette (Centred Handle)

2EP+,Gr02-2:985-1400 G:1395-1600 Y:985-1400

SKU:	185711101000

Brand

1130/25 Espagnolette (Centred Handle)

İsp,2EP+,Gr02-2:985-1400 G:395-600 Y:985-1400

SKU:	185711101000

Brand

1130/25 Espagnolette (Centred Handle)

2EP+,Gr02-2:985-1400 G:400-650 Y:985-1400

SKU:	185711101000

Brand

1130/25 25 mm Espagnolette (Centred Handle)

2EP+,Gr02-2:985-1400 G:595-800 Y:985-1400

SKU:	185711101000

Brand

1130/25 Espagnolette (Centred Handle)

1130/25 İsp,2EP+,Gr02-2:985-1400 G:995-1200 Y:985-1400

SKU:	185711101000

Brand
