Picture of 15mm Espagnolette (Centred Handle)

3D Görsel Bulunmamaktadır.

15mm Espagnolette (Centred Handle)

Range of use : Min: 262mm - Max: 2400mm

Axis : 15mm

Handles location : Centred Handle

Body Type : Zamac body

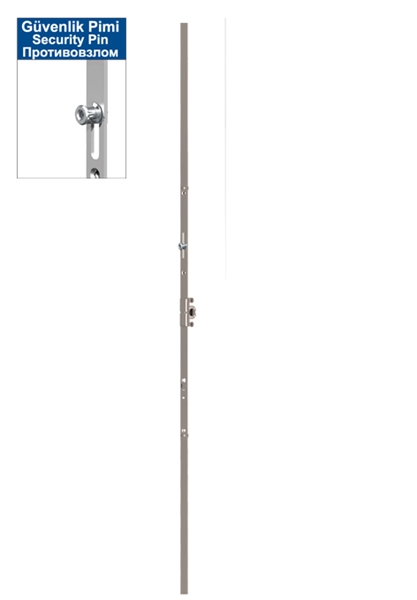

Security Level : w/Eccentric-Security Pin

Faulty usage / sash adjustment : Available

Upper Extension ;

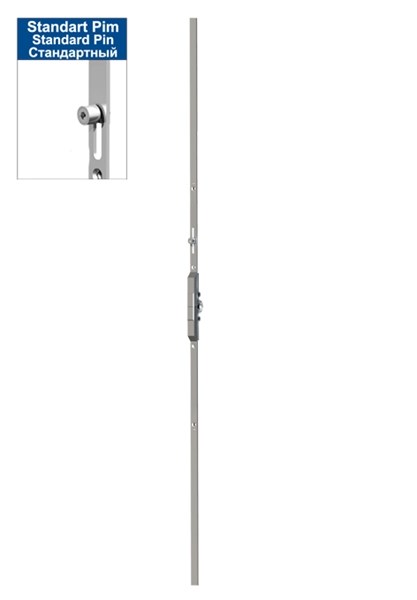

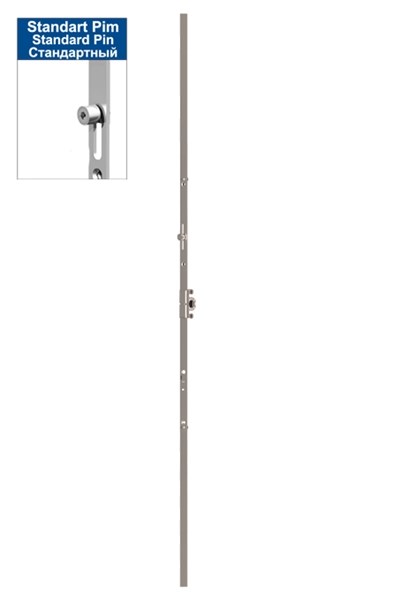

Standard, small, Safety Pin, security small, ventilated, double pin

corner transmission is usable (see page 30)

By using the standard seri of the corner tranmission,

is the hight of the sash minimum: 585mm.

If you use the small corner transmission; will the sash heighment be 476mm.

For the features of the Bottom Extension (Vertical)

Bottom lock hardware offers the ability to use the equipment. (see page 39)

For the features of the Bottom Extension (bottom regulated)

The safety pins and security corner transmission offers the ability to use the equipment.

(see page 30)

The security of the 'Faulty usage - sash adjustment';

Faulty usage and sash lifting device, provides increased safety.

Connection Gear

The add of this equipment assists and provid thermal insulation.

To regular the gasket pressure;

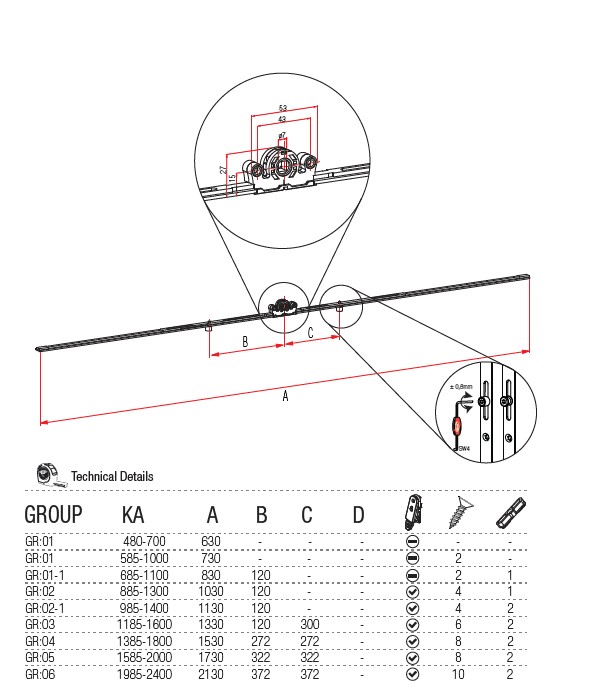

You can change the gasket pressure in a level range of +/- 0,8mm

Assembling;

It helps to easy the installation and save much time.

3,9x25 Rare serrated espagnolette screws code: 449.339.025.001

Coating;

YelkenCoat gives longer durability and corrosion protection to the hardware
